A fire protection gate valve controls the flow of water through a sprinkler or standpipe system. Keeping the valve in the correct position is essential because an accidentally closed valve can prevent water from reaching the fire protection system when it is needed. A tamper switch helps monitor this condition and provides an electrical signal when the valve position changes.
What Is a Tamper Switch?

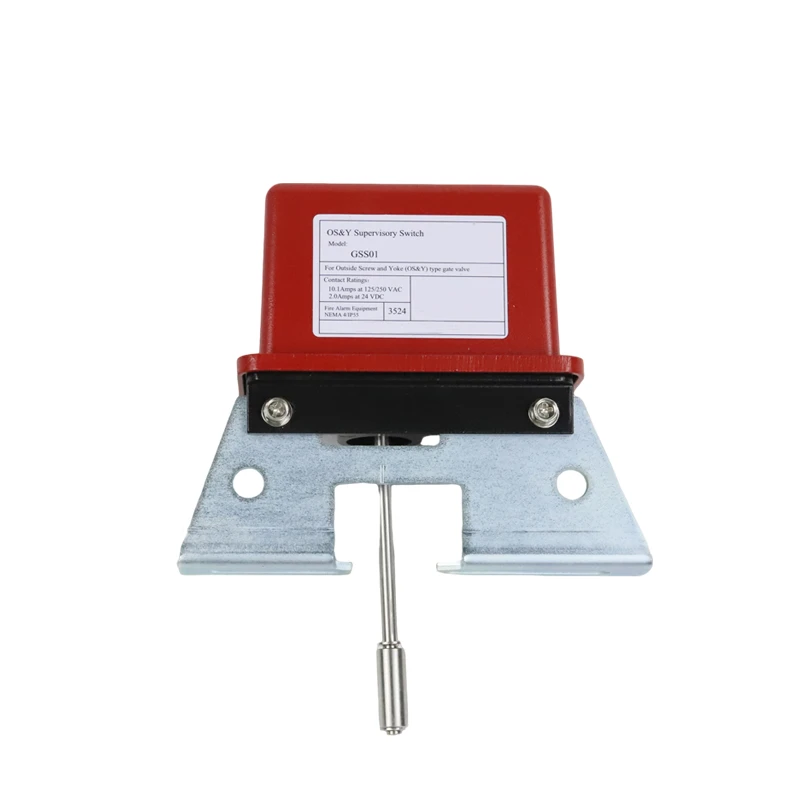

A tamper switch, also called a valve supervisory switch, is a monitoring device installed on a fire protection control valve. It is designed to detect unauthorized or unintended movement of the valve from its normal operating position.
For example, when a normally open gate valve is closed or moved away from its fully open position, the tamper switch can send a signal to the building fire alarm or supervisory monitoring system.
Why Is Tamper Monitoring Important?
Fire protection valves are normally required to remain in their designated operating position. If a valve is accidentally closed during maintenance or moved without authorization, the sprinkler system may have reduced or completely interrupted water flow.
A tamper switch provides an additional layer of supervision by helping building operators identify a valve position problem quickly. This is particularly important in warehouses, commercial buildings, industrial facilities, and other properties where multiple control valves may be installed.
How Does a Tamper Switch Work?
The switch is mechanically connected to the valve. When the valve moves from its normal position, the internal switching mechanism changes state and sends an electrical supervisory signal.
The tamper switch does not control the water flow itself. Instead, it monitors the valve position and communicates a change to the connected monitoring system.
Where Are Tamper-Switched Gate Valves Used?
Tamper switches are commonly associated with fire protection control valves serving sprinkler systems, standpipe systems, and other water-based fire protection installations.
The specific valve type, switch arrangement, connection method, and monitoring configuration should be selected according to the project requirements and applicable fire protection standards.
Key Considerations When Selecting a Fire Protection Gate Valve
When selecting a gate valve with tamper monitoring, engineers and contractors should consider:
Valve size and pressure rating
OS&Y or NRS design
Flanged or grooved connection
Compatible tamper switch
Installation environment
Required certification and project specifications
A properly selected and monitored gate valve helps maintain reliable control and supervision of a fire protection water supply system.
