Products Description

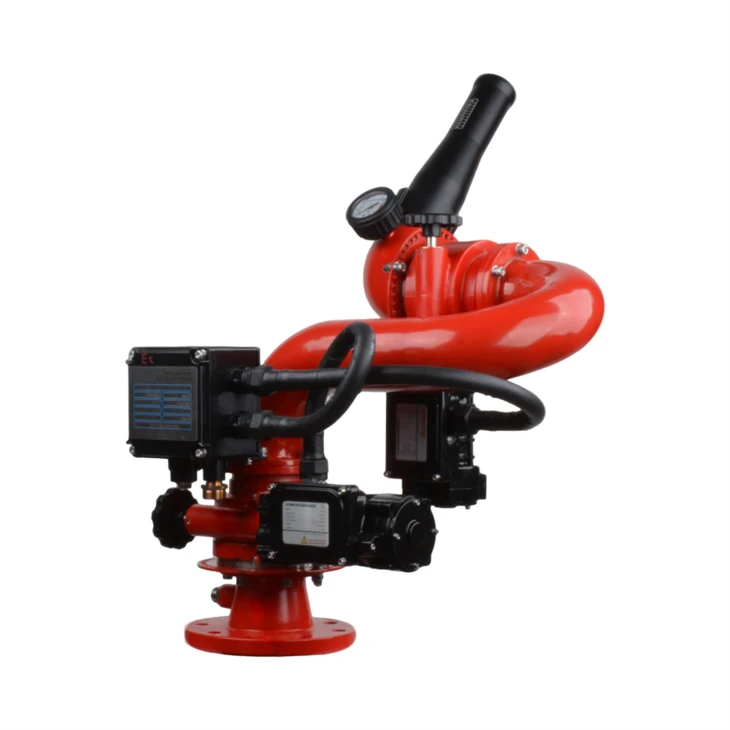

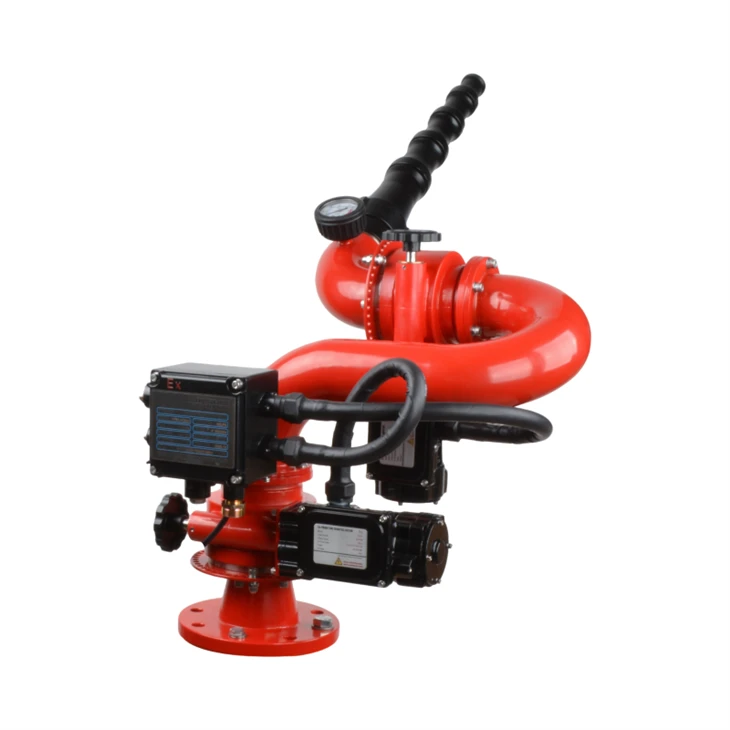

Explosion-Proof Electric Fire Monitor
This Electric Remote Control Fire Monitor is an explosion-proof firefighting solution designed for hazardous industrial environments where personnel safety and rapid, hands-off fire response are critical. Unlike manually operated monitors, this unit integrates a motorized actuator system that allows operators to control monitor positioning and discharge remotely - keeping firefighting personnel at a safe distance from explosion-risk zones, toxic smoke, or intense radiant heat.
Built with a stainless steel 304/316 monitor body and nozzle, reinforced with brass components, the unit is engineered for long-term reliability in petrochemical, offshore, and heavy industrial settings where both corrosion resistance and explosion-proof certification are non-negotiable requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Monitor Body | Stainless Steel 304 / 316 |
| Nozzle Material | Stainless Steel + Brass |
| Hand Wheels | Aluminum Alloy |
| Control Type | Wireless / Wired / Manual |
| Power Supply | AC 220V |
| Motor Actuator | 24V |
| Spray Pattern | Straight Stream / Fog |
| Working Pressure | 8 bar |
| Flange Standard | BS4504 / ANSI 150 / GB (optional) |
Explosion-Proof Design for Hazardous Locations
The defining feature of this monitor is its explosion-proof rating, which makes it suitable for deployment in classified hazardous areas - such as oil refineries, gas processing facilities, chemical plants, and offshore platforms - where flammable vapors, gases, or dust may be present. All electrical components, including the motor actuator and control wiring, are housed and sealed to prevent them from becoming an ignition source, even in the presence of explosive atmospheres. This allows the monitor to be safely installed in zones where standard electrical equipment would pose an unacceptable risk.
Advanced Control and Performance
Triple-Redundant Control System

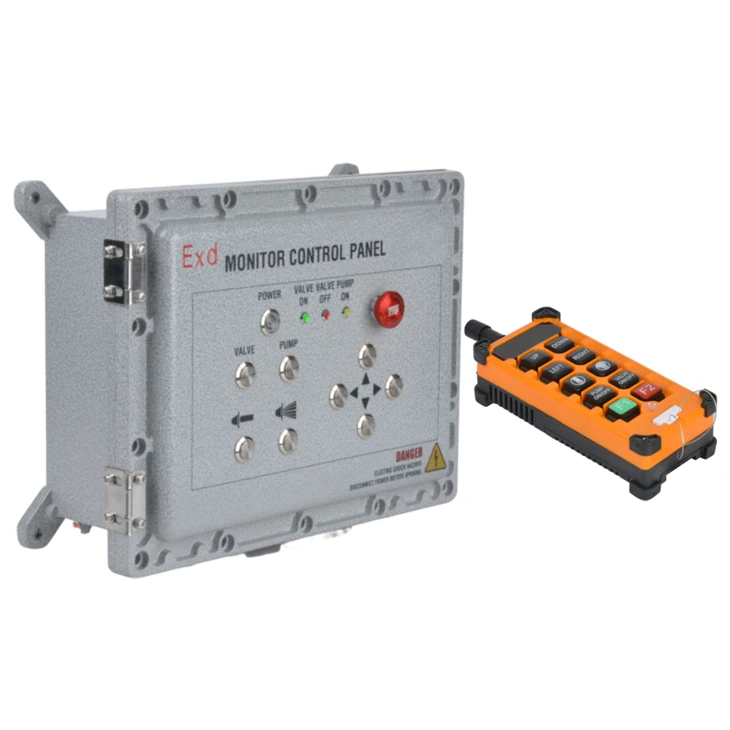

The monitor provides three independent control methods: wireless remote control, wired control box, and manual handwheel. Operators can adjust horizontal and vertical positioning and discharge patterns remotely, while the wired and manual controls provide reliable backup during power loss, actuator failure, or signal interference. This triple-control design ensures continuous firefighting capability in demanding conditions.
Motorized Positioning System
Horizontal and vertical movement is driven by a 24V motor actuator powered from an AC220V supply, delivering smooth and accurate positioning across a wide operating range of 340° horizontal travel and -45° to +85° vertical travel. This motorized system enables rapid, precise repositioning without operator fatigue, offering a clear advantage over manual monitors during extended firefighting operations or in situations where a single unit needs to cover a wide protection area.
Dual Discharge Pattern
Quality Assurance
Material Inspection
Incoming materials - including stainless steel 304/316 castings, brass components, and electrical parts - are inspected upon arrival to confirm they meet required specifications before entering production.
Hydrostatic Pressure Testing
Every unit undergoes full hydrostatic pressure testing at rated working pressure to verify structural integrity and confirm there is no leakage at seals, joints, or connection points.
Motor Actuator Function Verification
The motor actuator system is individually tested to confirm smooth, accurate positioning across the full horizontal and vertical travel range, with no abnormal noise, binding, or delayed response.
Triple-Mode Control Testing
All three operating modes - wireless, wired, and manual - are tested independently to confirm each functions correctly on its own and that switching between modes is seamless, ensuring the fail-safe design performs as intended.
Explosion-Proof Certification Check
Explosion-proof components, including the motor housing, wiring, and control enclosures, are inspected and certified to confirm compliance with applicable hazardous-area standards, ensuring sealed electrical parts will not become an ignition source in hazardous environments.
Final Approval & Shipment
Only units that pass the complete testing sequence - covering material quality, pressure integrity, motorized performance, control verification, and explosion-proof certification - are approved for final packaging and shipment.
