The deflector is a critical component of an automatic fire sprinkler. Although it is relatively small, its shape and position directly affect how water is distributed during sprinkler operation. A damaged, obstructed, or incorrectly positioned deflector can reduce the effectiveness of fire protection.
What Does a Fire Sprinkler Deflector Do?

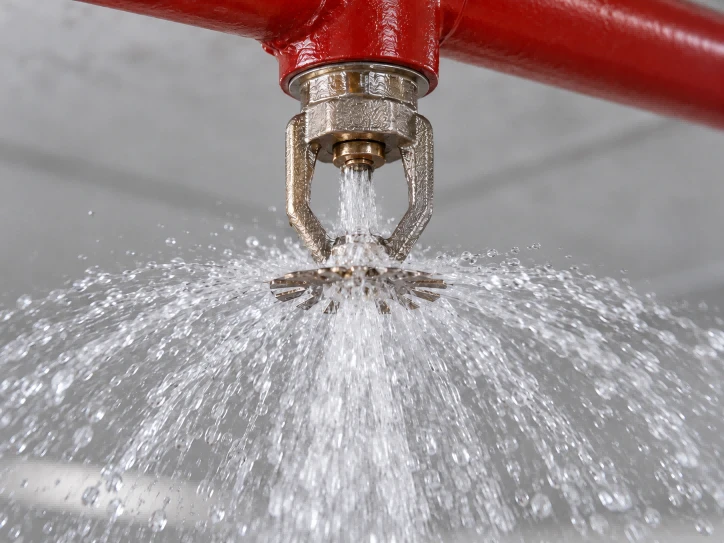

When a sprinkler activates, water flows through the sprinkler orifice and strikes the deflector. The deflector redirects the water into a designed spray pattern, helping distribute it across the protected area.
Different sprinkler configurations use different deflector designs. Upright, pendent, and horizontal sidewall sprinklers are engineered to distribute water according to their intended installation orientations.
[Internal Link 1] Explore NONFIR [standard response fire sprinklers] for available configurations.
What Happens If a Deflector Is Damaged?
A bent, broken, or improperly positioned deflector may change the sprinkler's water distribution pattern.
This can create uneven coverage and reduce the amount of water reaching certain areas. Even if the glass bulb activates normally, the sprinkler may not deliver water as intended.
Sprinklers with damaged deflectors should not be repaired or reshaped on-site. They should be replaced according to the manufacturer's instructions and applicable standards.
Can Nearby Objects Affect Water Distribution?
Yes. Beams, ducts, lighting fixtures, and other objects may obstruct sprinkler discharge.
The distance between the deflector and surrounding structures is important because obstructions can interfere with the spray pattern.
Installation requirements vary depending on sprinkler type, listing or approval, and applicable design standards.
For additional information about sprinkler installation considerations, refer to the fire sprinkler installation guide.
What Should Buyers Check?
When selecting fire sprinklers, buyers should confirm the installation orientation, K-factor, temperature rating, response type, and applicable approvals.
The sprinkler's deflector design must also be suitable for the intended installation. Different sprinkler models should not be considered interchangeable based on connection size or K-factor alone.
NONFIR Fire Sprinkler Solutions
NONFIR supplies upright, pendent, and horizontal sidewall sprinklers for various fire protection applications.
Our K5.6 FM Approved sprinkler range includes standard response and quick response configurations, subject to the approval scope of each model.
View NONFIR quick response fire sprinklers for product specifications and available models.
