Product Introduction
The FM/UL certified flanged outside screw and yoke (OS&Y) gate valve is designed for reliable performance in fire protection systems, including sprinkler and hydrant applications. Manufactured in compliance with FM Approvals and UL Listed standards, it ensures high safety, durability, and consistent flow control under emergency conditions.
This valve features a robust ductile iron or cast iron body with corrosion-resistant epoxy coating for long service life. The rising stem (OS&Y) design provides a clear visual indication of open or closed position, improving operational safety and system monitoring. Flanged end connections allow easy installation and secure integration with fire protection piping networks.
Engineered for low pressure loss and smooth operation, the valve is suitable for commercial buildings, industrial facilities, and fire suppression systems requiring dependable shut-off control. It is widely used in water-based fire protection systems where reliability and certification compliance are essential.
Role of Gate Valves in Fire Protection Systems
Gate valves play a critical role in water-based fire protection systems by controlling the isolation of water flow within pipelines. Their primary function is to provide a reliable shut-off or full-open operation, ensuring that water can be safely delivered to fire protection equipment such as sprinklers, hydrants, and standpipe systems when needed.
Unlike regulating valves, gate valves are designed for fully open or fully closed positions, which helps minimize pressure loss during normal system operation. This ensures efficient water delivery in emergency conditions, where maintaining stable flow and pressure is essential for effective fire suppression.
In fire protection networks, gate valves are commonly installed in key sections of piping systems to allow isolation of specific zones. This enables maintenance, inspection, or repair work to be carried out without shutting down the entire system, improving operational safety and system reliability.
Because fire protection systems must remain highly dependable at all times, gate valves used in these applications are typically required to meet strict industry standards such as FM Approval and UL Listing. These certifications help ensure that the valve can perform consistently under high-pressure and emergency conditions.
Overall, gate valves are an essential component in ensuring the safety, control, and reliability of modern fire protection systems.
OS&Y (Outside Screw and Yoke) Structure Explained

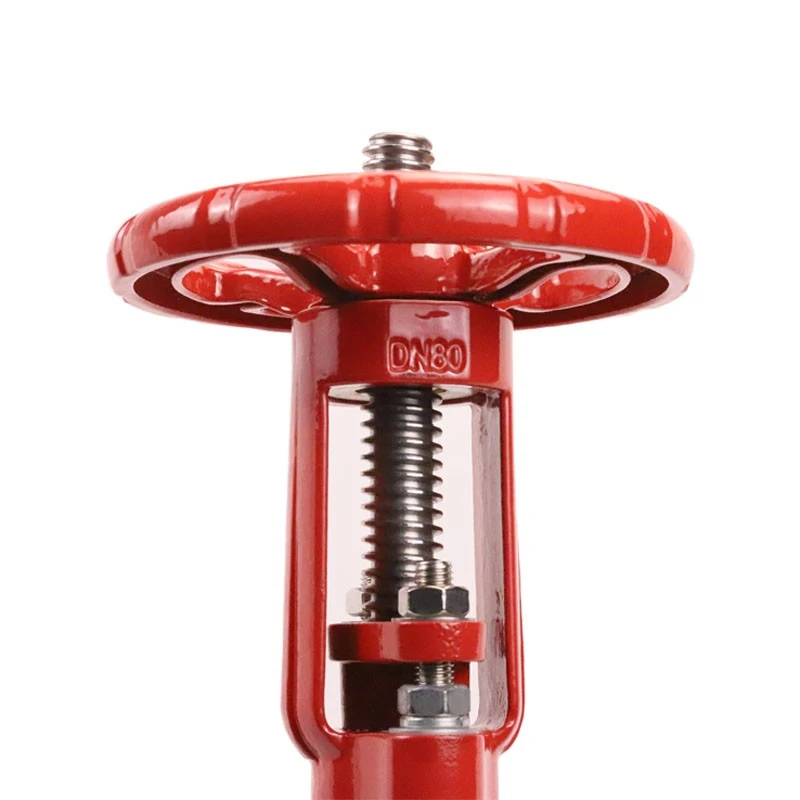

The OS&Y (Outside Screw and Yoke) gate valve is a widely used design in fire protection systems, known for its clear visual position indication and reliable operating mechanism. In this structure, the threaded stem is located outside the valve body, supported by a yoke assembly, which allows the stem to move upward and downward during operation.
When the valve is opened, the stem rises visibly above the handwheel. When the valve is closed, the stem moves downward. This external movement provides a simple and immediate visual confirmation of the valve's status, making it especially suitable for fire protection applications where quick inspection is required.
The yoke serves as a structural support that holds the stem and ensures stable alignment during operation. It also helps convert the rotational movement of the handwheel into linear motion of the gate inside the valve body, enabling smooth opening and closing action.
One of the key advantages of the OS&Y design is improved safety monitoring. Because the valve position can be seen at a glance, maintenance personnel can easily verify whether the system is fully operational or isolated, reducing the risk of accidental shutdowns in fire protection networks.
Due to its reliability and clear status indication, the OS&Y structure is commonly used in sprinkler systems, standpipe systems, and fire pump installations where system integrity and visibility are critical.
FAQ – FM/UL Flanged OS&Y Gate Valve
1. What is the main function of a fire protection gate valve?
It is used to fully open or fully close water flow in fire protection systems, ensuring reliable isolation and safe water delivery during emergencies.
2. Why is OS&Y design commonly used in fire systems?
The OS&Y (Outside Screw and Yoke) design provides a clear visual indication of valve status. The rising stem shows whether the valve is open or closed, improving safety and inspection efficiency.
3. What is the benefit of FM and UL certification?
FM Approval and UL Listing confirm that the valve meets strict international fire safety standards for pressure resistance, durability, and reliable performance under emergency conditions.
4. Where is this type of gate valve typically installed?
It is widely used in sprinkler systems, fire hydrant networks, standpipe systems, and fire pump stations in commercial, industrial, and high-risk facilities.
5. Does the gate valve require regular maintenance?
Yes, periodic inspection is recommended to check valve position, stem condition, and sealing performance to ensure the system remains fully operational at all times.
